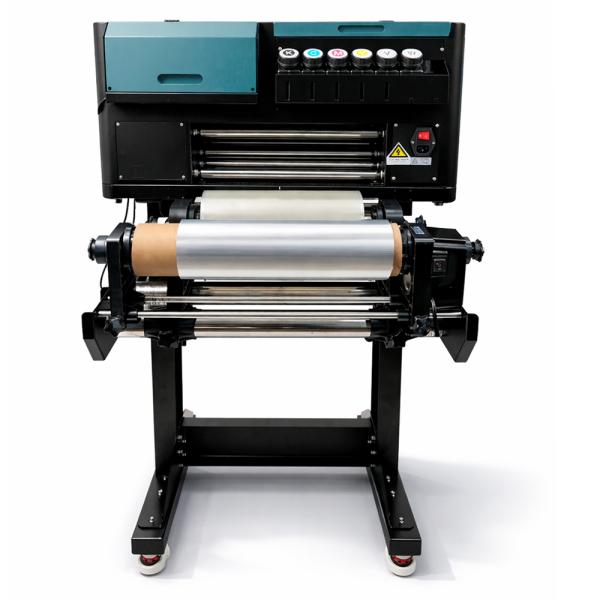

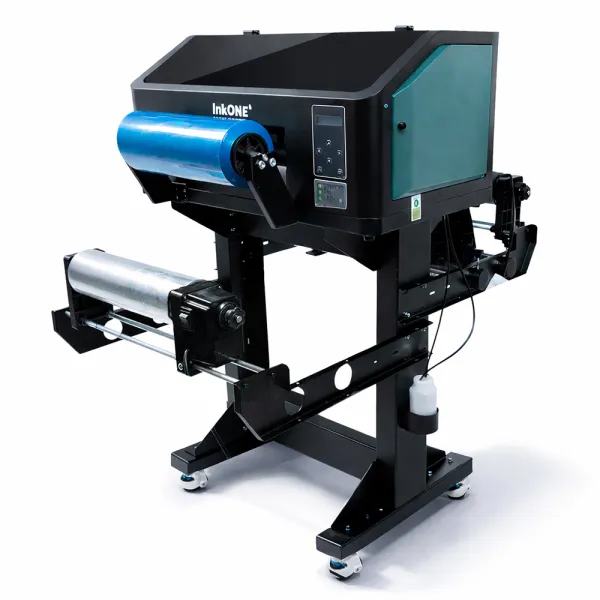

Introduction to the UV-DTF InkOne UM3 Printer
Benefits:
- 2-in-1 Printer and Laminator: performs printing, lamination, unwinding and rewinding, eliminating additional manual operations.
- Perfect for personalizing hard surfaces without any material limitations, for example, wood, glass, ceramic, acrylic, slate, etc.
Includes:
- 30 Dust-free cloths
- 10 Cotton swabs
- 10 Disposable gloves
- Black ink tube with 7 rows (1.8 m)
- 4 Ink bags, 2 syringes, 2 syringe needles, 2 ink tubes
- Wool cloth
- Printing software on USB disk (Printer software + Driver + ICC)
- Power cable
- 2 Printhead data cables (50 cm)
- Waste ink bottle
- Waste ink tank
UV DTF printing combines the image quality, high definition, and vibrant colors of UV printing with the flexibility, durability, and ease of application of the DTF technique, creating designs that can be applied using only your hands. A RIP and a controller are required for color management and white layer application, included with the printer purchase.
| Technical Specifications |
UV-DTF Printer InkOne UM3 (30 cm) |
| Maximum print width |
30 cm |
| Maximum paper width |
31 cm |
| Motherboard |
Hoson |
| Print head |
Epson XP600 |
| Number of print heads |
2 |
| Colors and injectors |
CMYK+WW - 6xV |
| Required operating system |
Windows 10/11 |
| Software |
InkOne RIP |
| Printing speed |
6 Pass 1080x720 6.6 ML/h (linear meters per hour)
8 Pass 1440x720 3.3 ML/h (linear meters per hour) |
| Interface |
Ethernet Gigabyte |
| Paper format |
Coil |
| Ink consumption |
20ml/m2 |
| Ink technology |
UV ink |
| Ink supply |
Refillable ink tank system |
| Lamination method |
Heating (automatic lamination) |
| White ink output |
W+C+Varnish |
| Power supply voltage |
220 V (±10%), 50/60 Hz |
| Maximum power |
99 W |
| Electric consumption |
0.45 A |
| UV lamp lifespan |
1 year |
| Printer dimensions |
72 x 75 x 118 cm |
| Product weight |
86 Kg |
| Warranty |
12 months* |
* The machine is covered by a 12-month delivery warranty, except for parts that handle ink, such as the printhead, capping, wiper, damper, or hose system.
Additionally, the warranty is subject to the exclusive use of InkOne-branded consumables. The use of third-party products may void the coverage, even within the specified period.
