Pack DTF Printer InkOne DX7 - 60 cm (full equipment)
€13,590.00 Price excludes VAT
€16,443.90 Price includes VATThe Pack DTF Printer InkOne DX7 - 60 cm (full equipment) combines the DX7 printer with the SX8 automatic dryer and shaker, together with all the necessary consumables to produce large-format DTF transfers with precision, high performance and a quality perfectly suited for professional work.
- Prints film rolls up to 60 cm wide
- NeoStampa RIP software
- 2x Epson i3200 printhead
- Circulating System: prevents sediment build-up and clogging
- Printing speed: up to 6 Pass 1800x720 at 12.8 ML/h; 8 Pass 2400x720 at 9.9 ML/h (linear metres per hour)
Your printer from €275,39 /month – *Rental subject to approval
Full support guaranteed: We provide all spare parts for your InkOne DX7 DTF printer, and if you can't find a specific part, we’ll get it for you. Additionally, we offer specialized technical service for any repairs or support you may need. Your peace of mind is our priority!
Introduction to the InkOne DX7 DTF Printer

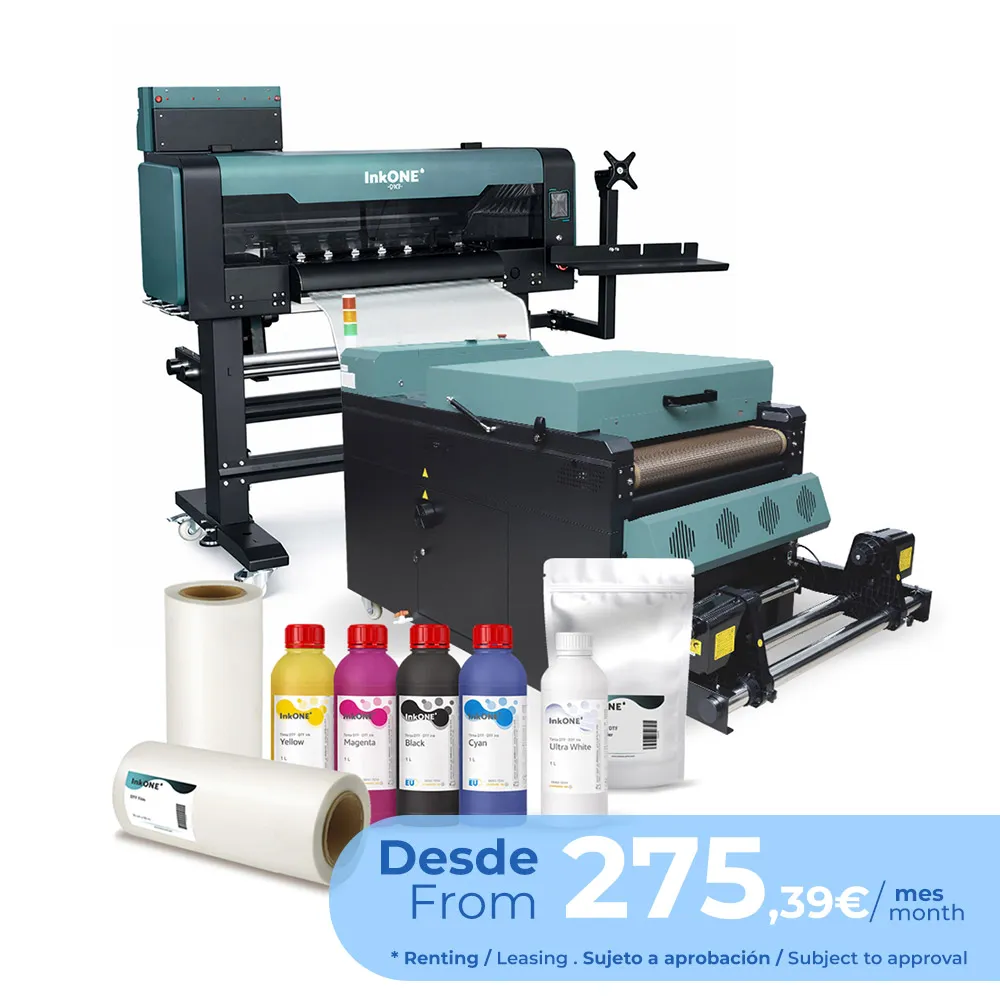

The DTF Printer InkOne DX7 pack includes:
1. Machinery

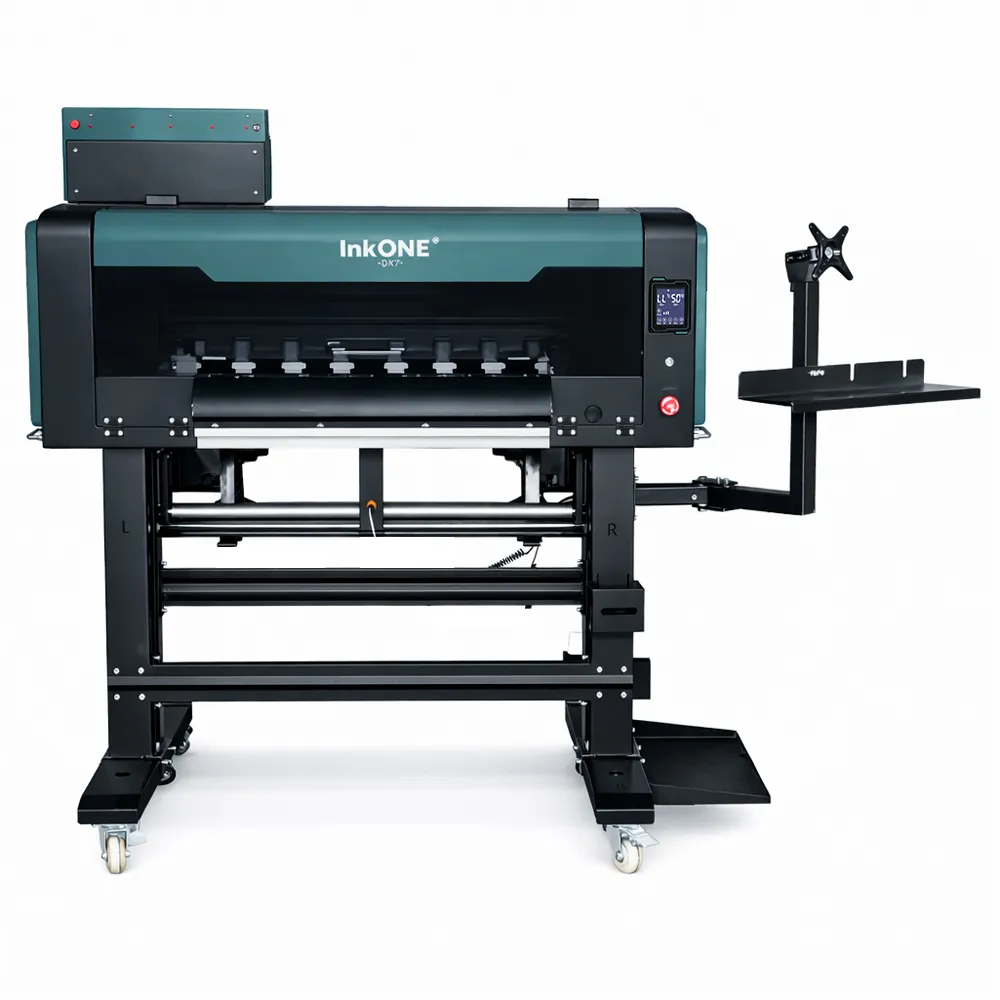

- DTF Printer InkOne DX7 (60 cm)
- Coils up to 60 cm wide
- Ink recirculation system, white ink agitator, and additional filtering in dampers
- Epson i3200 dual printheads: high printing speed of up to 6 Pass 1800x720 12.8 ML/h ; 8 Pass 2400x720 9.9 ML/h (linear meters per hour)
- Perfect for advanced and industrial production systems, without taking up excessive space

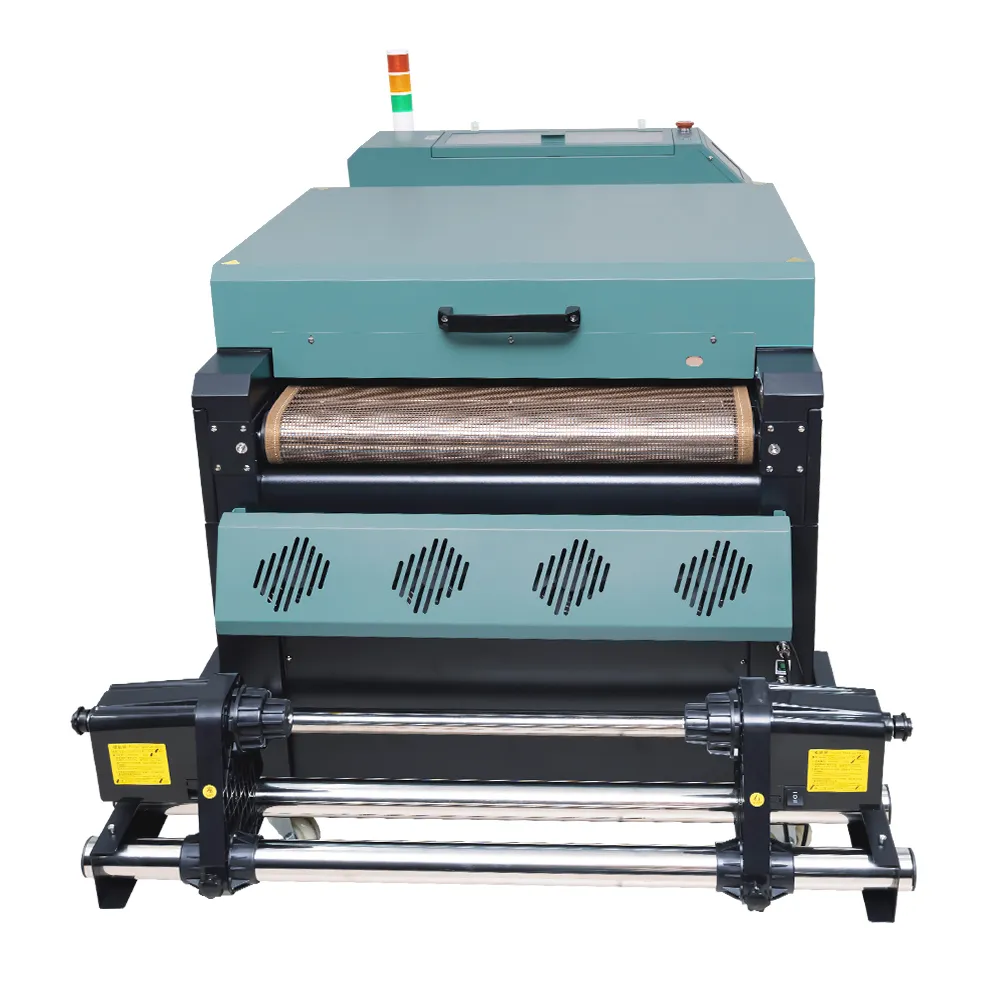

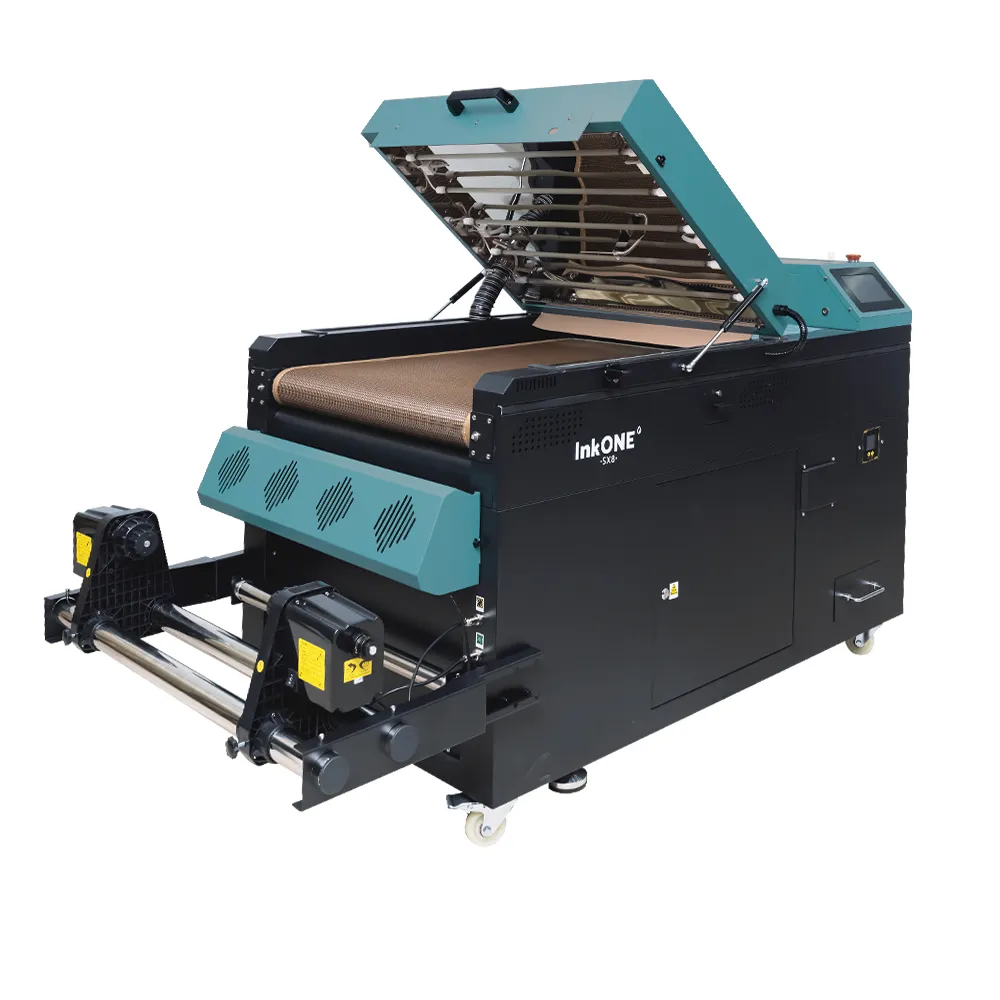

- DTF Dryer and Shaker InkOne SX8 (60 cm)
- Automatically collects excess powder and reuses it, eliminating the need for manual recycling
- Optimized working width: supports DTF film rolls up to 60 cm, ideal for large-format productions

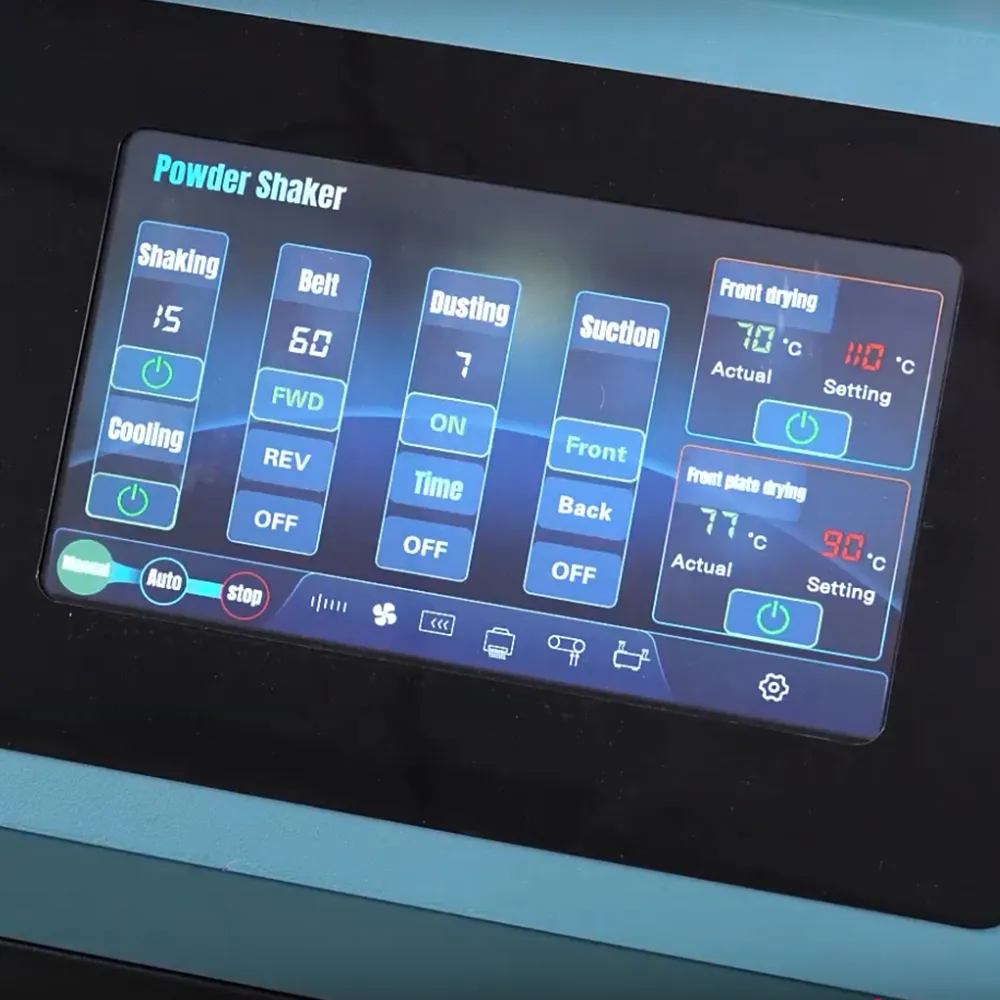

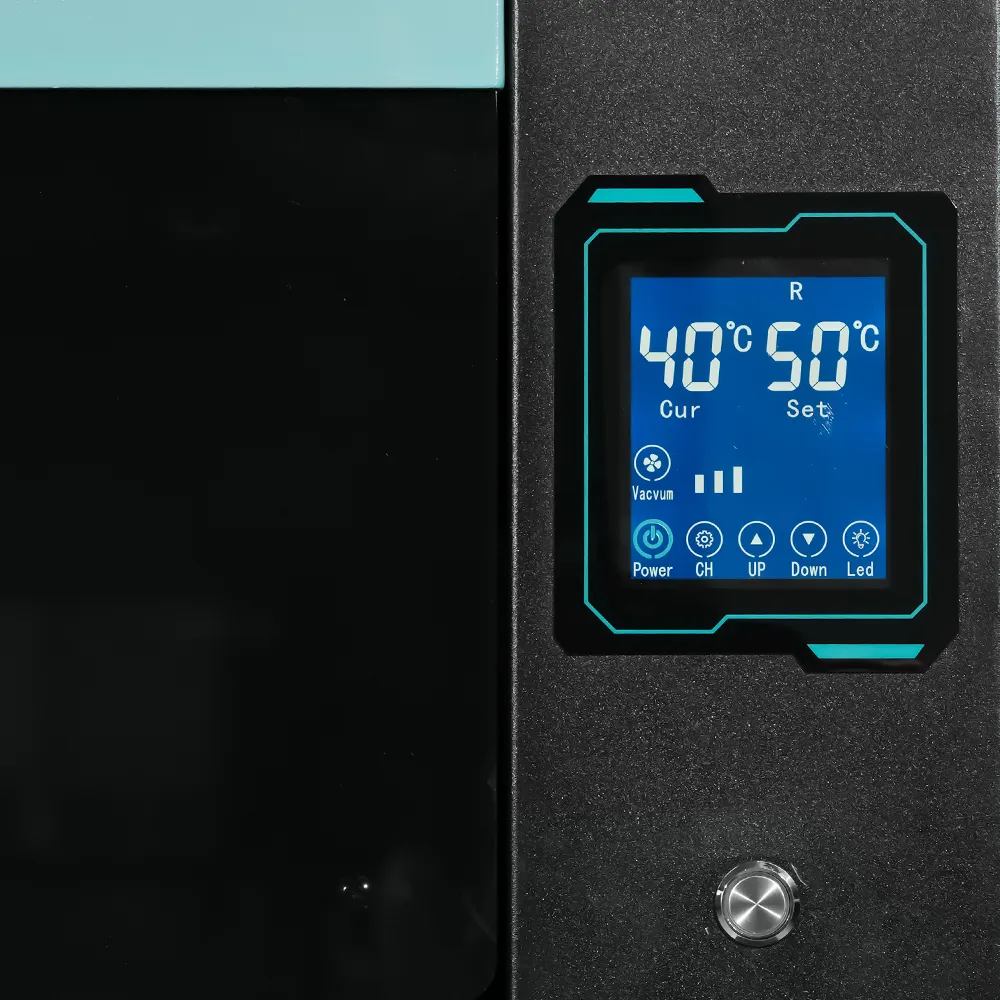

- Multifunction digital panel: controls all key parameters such as temperature, speed, and ventilation

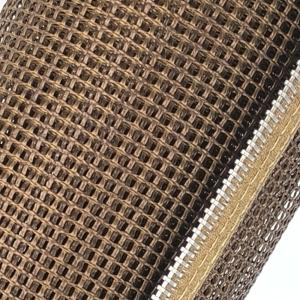

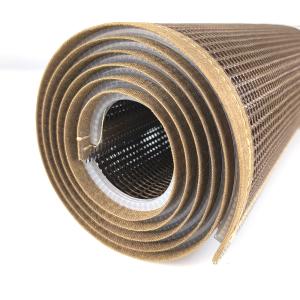

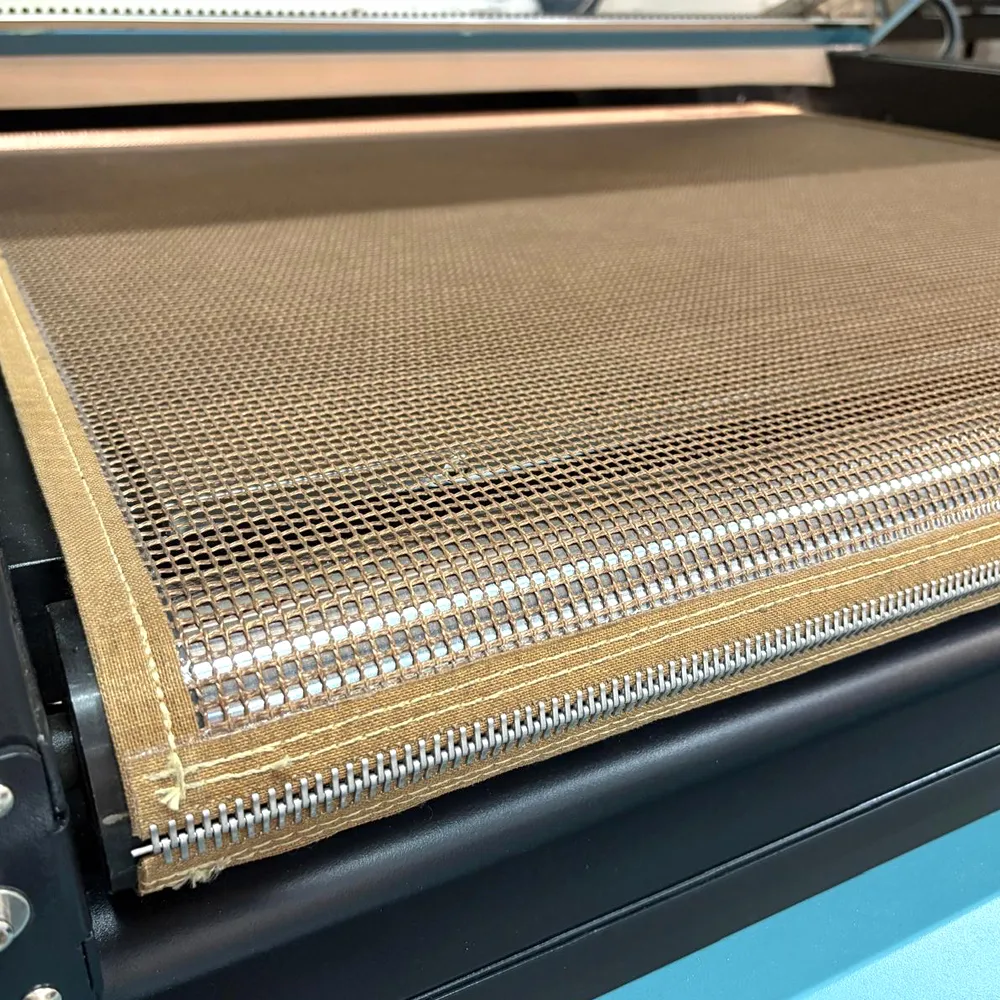

- Suction belt system: keeps the film in place during drying for precise alignment
- HEPA and activated carbon filter: purifies the air extracted from the oven for a safer environment
2. Consumables
- DTF Inks: 5 bottles of 1L (Cyan, Magenta, Yellow, Black, and Ultra White)
- Extra strong cleaner liquid: 90 ml
- DTF Film: 60 cm x 100 m roll (instant peel)
- DTF Polyamide Powder: 1kg
3. Accessories
- Floor stand for the printer
- USB disk with printing software (Printer software + Driver + ICC)
- 3-meter network cable
- 3-meter 220V 16A power cable
- Printhead data cable i3200: 8 + 2 units
- Damper i3200: 8 + 2 units

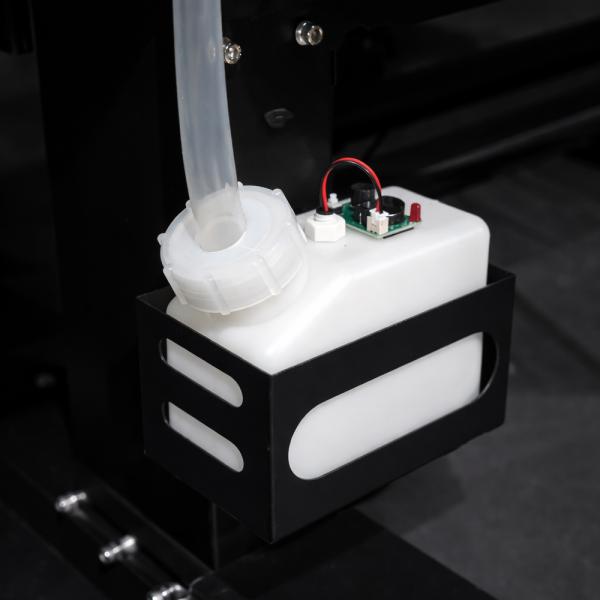

- 1L waste ink bottle
- 10 adhesive tapes
- A630 ink bottle holder
- Ink tube: 1 unit
- Syringe: 1 unit
- Ink tube connector: 10 units
4. Software Rip
- NeoStampa RIP
Support and installation
- 2 hours of online support included
- Audio-visual support for configuration and replacement of spare parts: see InkOne video tutorials
We also offer on-site installation. For pricing information, please contact us at info@sublimet.com or by phone at +34 93 486 90 25.
A RIP and controller are required for color management and the application of the white layer, which are included with the purchase of the printer. Both the DTF printer and the DTF inks must be located in a place where the temperature is between 18ºC and 28ºC with a humidity between 45% and 60%.

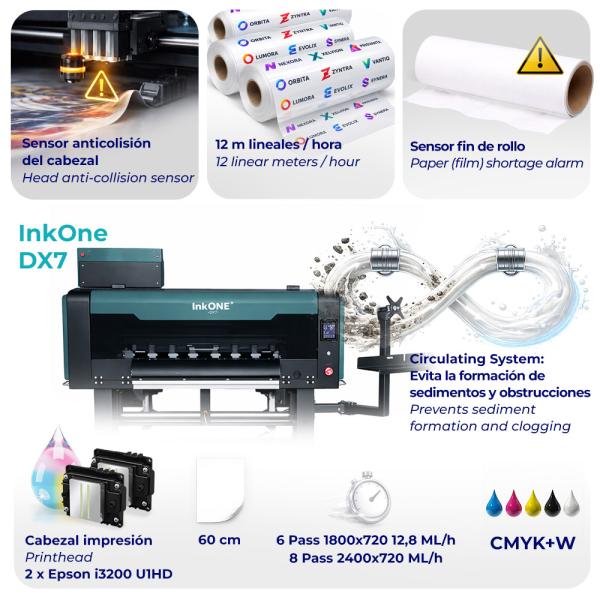

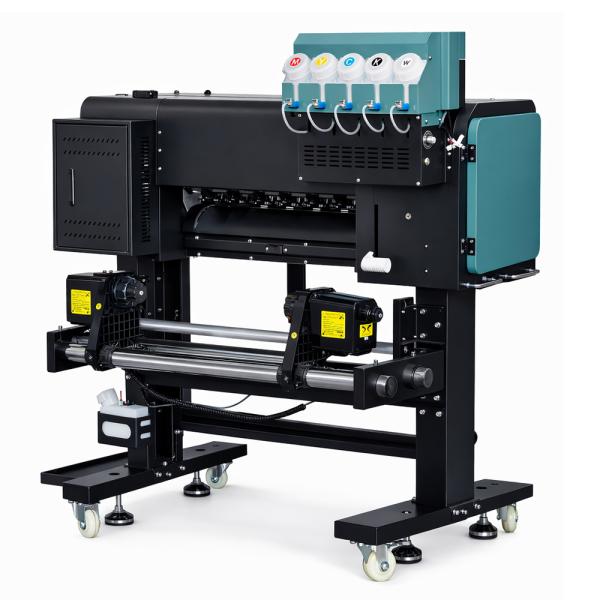

InkOne DX7 features:
- Maximum print width: roll 60 cm.
- Stand: includes floor stand.
- Circulating System: the ink recirculation system, white ink agitator, and additional filtering in the dampers prevent sediment buildup and clogs.
- Head strike sensor: protects the printheads from potential damage, extending the machine's lifespan.
- Auto-cleaning system: keeps the printheads clean and in optimal condition, minimizing downtime.
- Dual printhead: two Epson i3200 printheads achieve highly realistic colors and a high printing speed of up to 6 Pass 1800x720 12.8 ML/h ; 8 Pass 2400x720 9.9 ML/h (linear meters per hour).

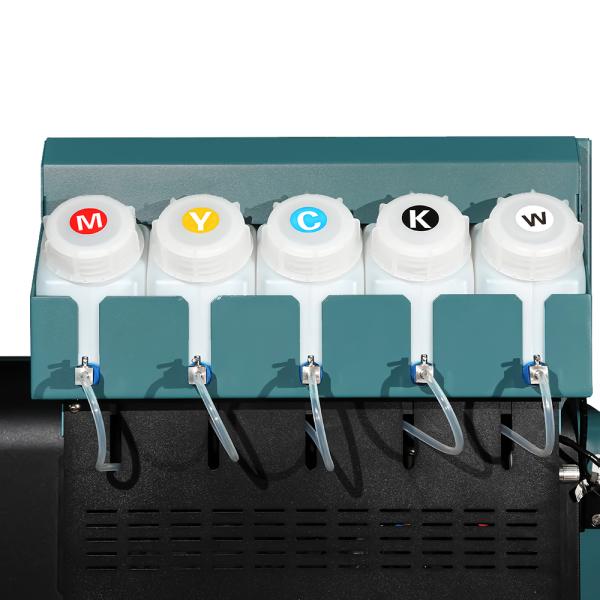

- Ink management: features refillable ink tanks and a low ink level alert system.
- Automatic capping station humidification: prevents the printheads from drying when not in use, ensuring the equipment's durability and efficiency.
- Automatic cleaning: keeps the printheads clean and in optimal condition, minimizing downtime.
NeoStampa RIP Software (included)
- Advanced colour management: developed by Inèdit, NeoStampa delivers superior colour reproduction for DTF printing, with exceptional accuracy on complex tones such as reds, magentas, oranges and purples
- Smart white control: dynamic white system that automatically adjusts the amount of white ink according to the design, reducing consumption, improving the final hand-feel and optimising fine lines and small details
- Professional accuracy and repeatability: enables you to create, save and reuse custom colour libraries, ensuring consistent results for repeat runs and demanding jobs
- Production control centre: advanced management of print queues, workflows and priorities, ideal for high-productivity DTF environments
- Cost and consumption control: generates automatic reports on ink and material usage, making it easier to optimise resources and improve business profitability
- Full integration within the InkOne DX7 pack: NeoStampa is supplied with a USB dongle licence and is optimised to work with InkOne DTF printers and other professional brands
Ultra White ink:
ATTENTION: The Ultra White color offers a more opaque and intense white. It also has a higher density than the regular White color, which means the printhead may clog more easily.
| Characteristics | White Ink | Ultra White Ink |
|---|---|---|
| Opacity | Standard white with good coverage. | More opaque and intense white, ideal for more striking results. |
| Recommended Application | Suitable for all types of light or dark textiles. | Especially recommended for dark garments, where white needs to cover and stand out more. |
| Ink Density | Normal, maintains consistent fluidity in the print head. | Higher density, offers more pigment but requires additional adjustments and care. |
| Clogging Risk | Low, suitable for continuous use without problems. | Higher risk of clogging; requires more rigorous and frequent maintenance. |
| Maintenance | Standard cleaning and agitation routines. | Shorter maintenance intervals needed; temperature and humidity must be monitored. |
| Printing Result | Balanced colors and good overall definition. | More vivid colors and brighter whites, with greater contrast on dark textiles and t-shirts. |
InkOne DX7 technical specifications
| Technical Specifications | DTF Printer InkOne DX7 (60 cm) |
|---|---|
| Maximum print width | 60 cm |
| Maximum paper width | 61 cm |
| Mainboard | Hoson |
| Printhead | 2x Epson i3200 |
| Number of printheads | 2 |
| Colors and nozzles | CMYK+WWWW |
| Required operating system | Windows 10/11 |
| Software | NeoStampa RIP |
| Printing speed | 6 Pass 1800x720 a 12.8 ML/h (linear meters per hour) 8 Pass 2400x720 a 9.9 ML/h (linear meters per hour) |
| Interface | Ethernet Gigabyte |
| Paper format | Coil |
| Ink consumption | 20ml/m2 |
| Ink technology | Water-based pigment ink |
| Ink supply | Refillable ink tank system |
| White ink recirculation and agitation | Yes |
| Head-strike sensor | Yes |
| Compatible with automatic oven | Yes |
| Power supply voltage | 220 V (±10%), 50/60 Hz |
| Maximum power | 800 W |
| Electric consumption | 3.6 A |
| Printer dimensions | 180 x 140 x 96 cm (W x H x D) |
| Packaging dimensions | 147 x 70 x 100 cm (W x H x D) |
| Weight with packaging | 185 Kg |
| Product weight | 127 Kg |
InkOne SX8 Dryer technical specifications
| Technical specifications | DTF Dryer and Shaker InkOne SX8 (60 cm) |
|---|---|
| Maximum paper/film width | 60 cm |
| Powder filling hopper | Yes |
| Powder collection drawer | Yes |
| Supported speed | 15m2/h |

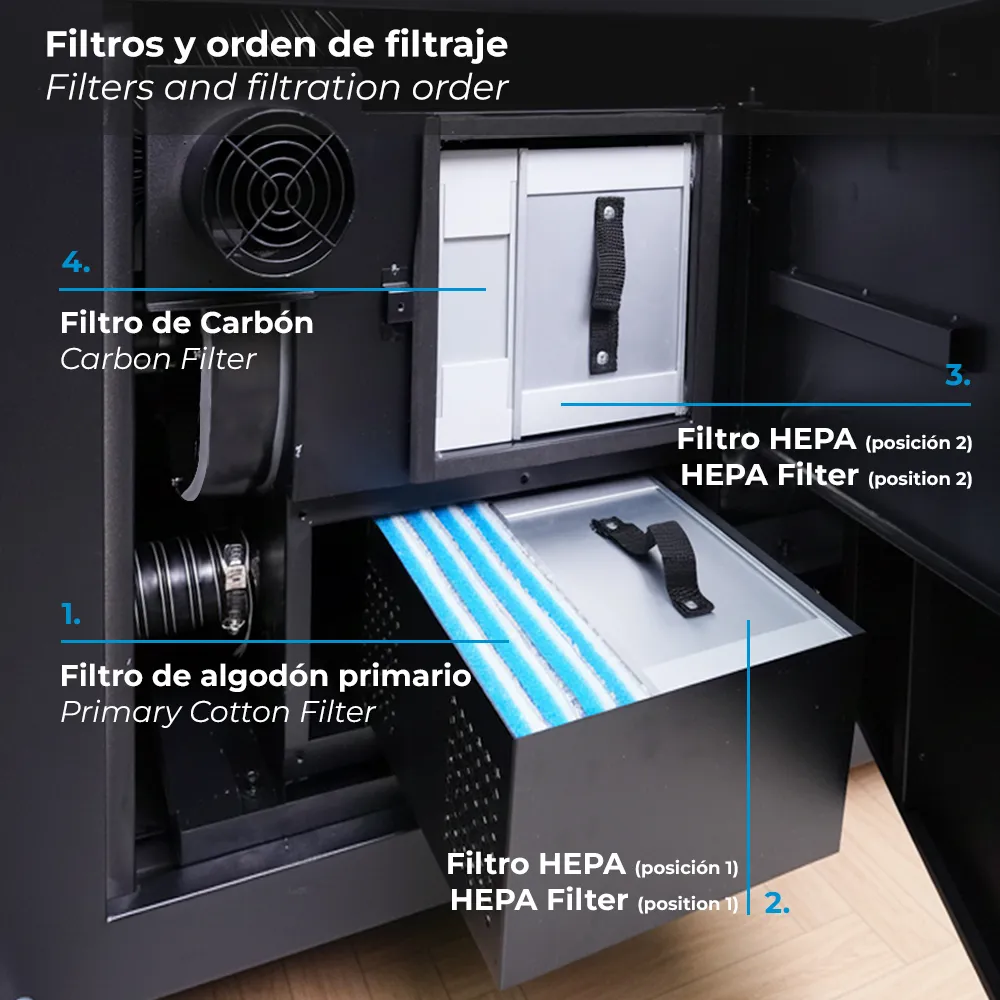

| 4-layer smoke purifier | Primary cotton filter HEPA filter (Size A) HEPA filter (Size B) Activated carbon filter |
| Power supply voltage | 220 V (±10%), 50/60 Hz |
| Maximum power | 4.4 KW |
| Electric consumption | 20 A |
| Net machine weight | 192 Kg |
| Machine dimensions | 90 x 100 x 180 cm (W x H x D) |
| Packaging dimensions | 160 X 112 X 113 cm (W x H x D) |
InkOne warranty
The machine is covered by a 12-month delivery warranty, except for parts that carry ink, such as the printhead, capping, wiper, damper or tubing system.
Additionally, the warranty is subject to the exclusive use of InkOne brand consumables. The use of third-party products may void the warranty, even within the covered period.
- Brand
- InkOne
- Printer
- InkOne DX7 (60 cm)
- Paper format
- Coil 60 cm
- Printers by type
- DTF
- Ovens and purifiers
- InkOne SX8
140000042
New
Last items in stock
Spare parts for InkOne DM4 Printer
Capping for DTF printer InkOne DM4 / DX7 / Epson i1600 and i3200
(0)
€28.90
Spare parts for InkOne DM4 Printer
Damper for DTF printer InkOne DM4 and DX7 / Epson i1600 and i3200
(0)
€8.90
Spare parts for InkOne DX7 Printer
Data cable for printhead of DTF printer InkOne DM4 and DX7 / Epson i1600 and i3200
(0)
€29.90
Spare parts for InkOne SZ1 oven
HEPA filter for fume purifier for DTF ovens InkOne SX8 / SZ1
(0)
€87.00
Last items in stock
| Start day | End day | Weekly | Quarterly | Semi-Annual | Annual | |
|---|---|---|---|---|---|---|
| Nozzle cleaning from the software | ||||||
| Print nozzle test and repeat cleaning if necessary | ||||||
| Check that the white ink agitator and recirculator work correctly | ||||||
| Nozzle cleaning from the software | ||||||
| Print nozzle test and repeat cleaning if necessary | ||||||
| Cleaning of the capping and wiper | ||||||
| Pour cleaner liquid inside the capping | ||||||
| Cleaning of platterns, platform and paper rollers (if necessary) | ||||||
| Cleaning of the underside of the head plate | ||||||
| Cleaning of encoder with a polyester wipe and isopropyl alcohol (or distilled water if necessary) | ||||||
| Empty residual ink tank | ||||||
| Manually shake white ink tank | ||||||
| Clean and grease the head guide | ||||||
| Replace the white and color ink dampers | ||||||
| Replace wiper | ||||||
| Replace ink filters | ||||||
| Replace capping | ||||||
| Replace circulation pump tubes |
